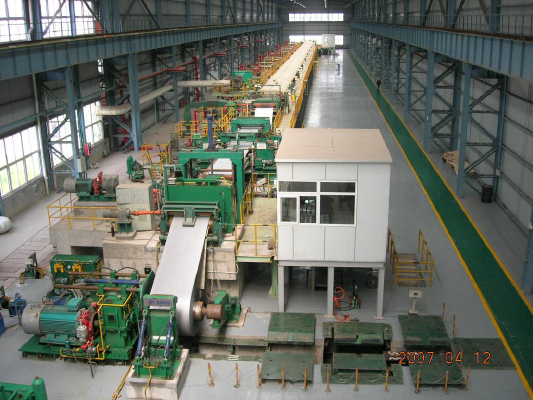

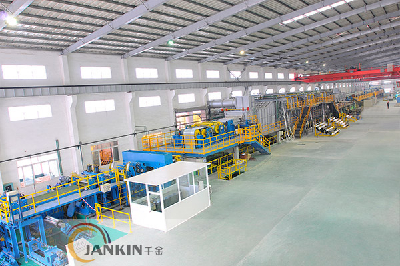

Push-Pull Pickling Line
Push-Pull Type Pickling Line is a kind of semi continuous production line, has simple equipment, applicable to strip steel varieties, low production cost, less equipment operation fault etc. The unit is suitable for 10-600000 tons of annual production.
Process Flow
Pay off Reel →Nine roll Leveller →End Shear→ Riveter →Entry Looper →Pre- rinsing Section Pickling Tank →Rinsing Tank →Hot Air Drier →Exit Looper →Deflector →Disc Shear(with scrap coiler)→Tension Roll →Shear →Oiler →Coiler
- Place of Origin: China Mainland
- Brand Name: zhyu
- Model Number: ESL-0.5x1300
Process Parameter
Following is the data for Push-Pull Pickling hot rolled strip with the annual yield of 400,000 tons of ordinary hot-rolled steel strip .
Acid | Annual Output | Strip Thickness | Strip Width | Coil Weight | Line Speed |
HCL | 400,000t/a | 1.2-1.8-4.5mm | 500-1300mm | Max25t | 120m/min |
